DESCRIPTION

Basic Info.

Model NO.	SW-SM131X
Application	Home Furnishing, Engineering, Office
Certification	CE, RoHS, EMC
Voltage	85-256V
Applicable Places	Balcony, Conference Room, Living Room, Restaurant, Study Room, Bedroom
Beam Angle	15/24/40/60
Chip	Epistar/CREE/Osram
Dimension	D80mm * H105mm
Cutout	73mm
Lifetime	>50, 000 Hours
CRI	>80
CCT	2700-6500K
Current	200mA
Power	9W
Transport Package	Normal Packing Box
Specification	CE, RoHS by TUV
Trademark	Starwire
Origin	Shenzhen, Guangdong, China
HS Code	9405409000
Production Capacity	50, 000PCS Per Months

Product Description

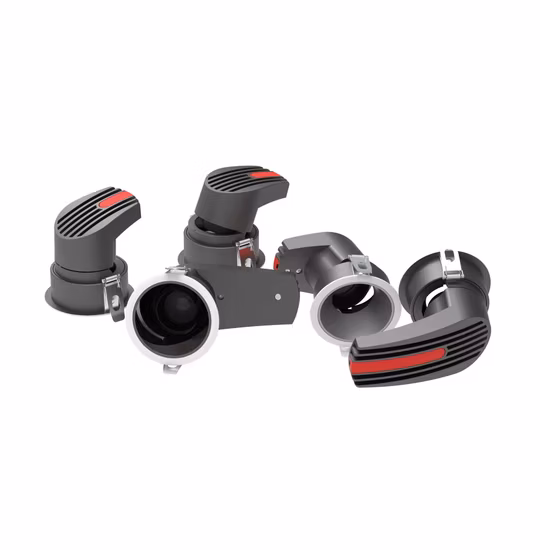

2018 hot sale high brightness white COB led downlight 9W with anti-glare

1) Modularization design to comply with Zhaga Standard
a. Choice of 9W/11W/15W high performance light source b. Suitable for installing led MR16 GU10 as well
2) Light source module3) More housing optional

4) Our Elf series Anti-Glare cut-off angle 5) Our Elf series with dark technology

6) Specification

Model	SW-SM131X
Power input	9W± 10%
Input Voltage	as driver input
LED Current	200mA
Light Source	COB espistar/cree/osram
Color temperature	2700-6500K
Beam Angle	15º/40º/40º/60º
CRI	>80
Luminous Flux(lm)/3000K	720lm± 10%
IP Rate	IP20
Working temperature	-40 ~ 50ºC
Demension	Φ80*105mm
Cutout	Φ73mm
Surface color	White

Features

• 9W high lumen 3 years warranty COB Led downlights.
• High energy efficient, only 10%-15% power consumption of incandescent lamp.
• Environmental friendly, No UV or IR radiation, no noise.
• High CRI more than 85, approximate to the nature light.
• High luminous efficiency over 70lm/w, energy saving.
• Stable luminous, brightness degradation below 1% in 1.5 hours.
• Excellent light spot, comfortable to eyes, no flicker, no strobe.
• Either light is 30º rotative on 2 direction, easy to adjust the light.
• Low decay with 70% lunimous over 30,000 hours, and 30% luminous over 50,000 hours.
• Thick and solid aluminium material, low thermal resistance, good heat dissipation.

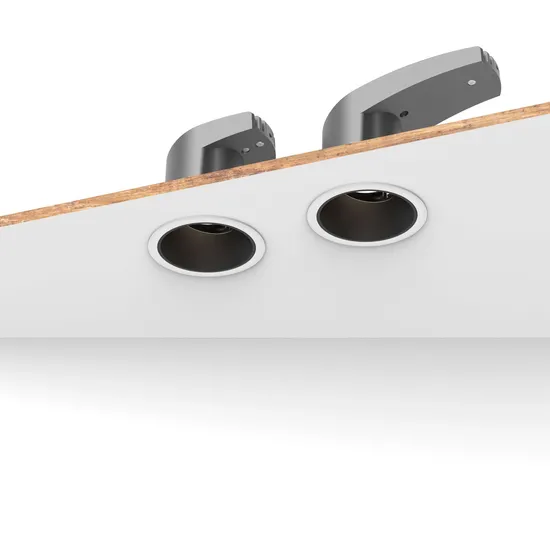

• Easy recessed installation. Fix it in the cut hole with the spring bars directly.
• More than 50000 hours lifespan, 20 years life if working six hours per day.

Installation

Step1: Turn off all powers, cut out the fitting hole on the ceiling or board.

Step2: Connect switch and input wire of power, then connect and install the light.

Step3: Turn on the power and done all the works.

Application

It is replpacement for traditional halogen lamp, widely used in hotel, house, office, parking lot, exhibition, club and other places that need indoor lighting.Notes for safe using

1. Power must be cut off before installation, fix it on the position of installation holes, connection of the power supply must be sealed to prevent electric shock.

2. Please confirm the applicable power supply before using.

3. Operation against rules may damage your property even harm to your personal safety.
